EIGER2 X and XE Detector Series from DECTRIS

Although passion and innovation play a decisive role in research, most ambitious projects are realized by robust, modern tools.

The brightness of synchrotrons keeps getting better. To manipulate the increasing photon fluxes at the strongest beamlines, the EIGER2 X and XE detectors are integrated with DECTRIS retrigger technology, which was first launched with PILATUS3 and supports a fourfold increased photon-counting capacity of up to 107 photons/second/pixel.

The EIGER2 X and XE X-ray detectors include several extra innovations. The continuous readout of the EIGER detector has been improved to be completely dead time-free. The detectors currently offer a second tunable energy-discriminating threshold and provide gateable detection for pump-and-probe experiments.

The pixel size of 75 µm and direct detection of photons for maximum spatial resolution have been retained from the EIGER detector.

DECTRIS ultra-fast, large-area detectors help users to expand their research applications. The absence of dark current or readout noise allows users to quantify the best data.

Users can manipulate their beamline capabilities with the latest detector technology as well as complete support from the entire DECTRIS team.

Download the Brochure for More Information

Main Advantages

  • Count rate capability of up to 107 photons/second/pixel
  • Compact housing
  • High spatial resolution with a pixel size of 75 µm
  • Single-pixel point-spread function
  • KiloHertz frame rate with dead time-free readout
  • Dual-energy discriminating threshold
  • Large active area for broad angular coverage
  • Gateable detection for pump-and-probe experiments
  • Room-temperature operation of all parts
  • Readout noise or dark current is absent

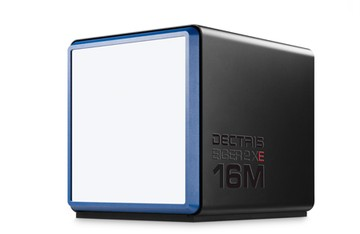

EIGER2 XE 16M

EIGER2 XE 16M — the flagship detector from DECTRIS — includes 16 million pixels, a detective area of 311 x 328 mm2, and a frame rate of 550 Hz. It is the fastest and largest high-performance detector available today.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

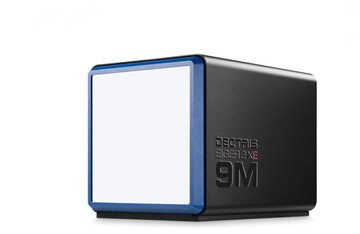

EIGER2 XE 9M

The EIGER2 XE 9M has an area of 233 x 245 mm2 and includes 9 million pixels, making it perfect for macromolecular crystallography — available in XE performance.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

EIGER2 X 16M

EIGER2 X 16M is the largest macromolecular crystallography detector that offers ultimate performance.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

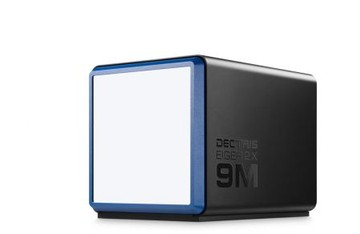

EIGER2 X 9M

The EIGER2 X 9M detector includes 9 million pixels for macromolecular crystallography and other similar high-demanding synchrotron applications.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

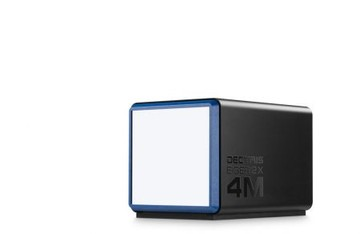

EIGER2 X 4M

The EIGER2 X 4M is a great tool for SAXS, serial crystallography, or ptychography that can optionally be operated in vacuum.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

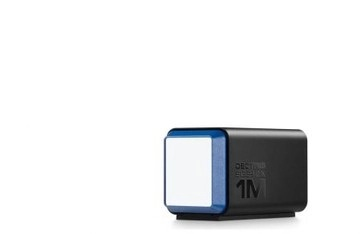

EIGER2 X 1M

The EIGER2 X 1M has more than 2000 Hz frame rates and is the detector of choice for dynamic procedures like time-resolved small-angle X-ray scattering and photon correlation spectroscopy.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.

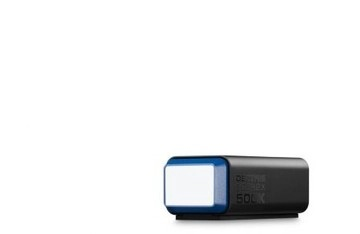

EIGER2 X 500K

The EIGER2 X 500K is a universal, compact, and fast HPC detector.

EIGER2 X and XE Detector Series from DECTRIS

Image Credit: DECTRIS.
