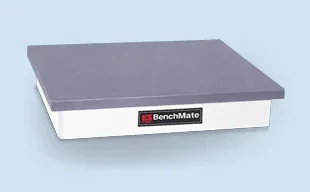

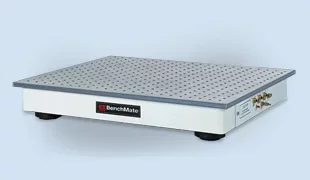

BenchMate Vibration-Free Platforms increase the performance of high-precision tabletop equipment.
The 2210 Series’ Passive-Air design requires regular manual leveling.
Typical Applications
Balances, profilometers, atomic force microscopes, audio equipment, microhardness testers, and other instruments for precise measurement and testing.
Image Credit: Kinetic Systems, Inc.
Features and Benefits
- Flatness: ±0.004 ” over 24×24 ” on top surfaces -22 and -32
- Compatible with Class 100 cleanrooms; Class 10 available
- SPILLPRUF spill management
- Unmatched price/performance
- Vibra-dampened structure
- Low-profile and passive-air design
- Low inherent frequency
Specifications
Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
2.3 Hz |
| Isolation Efficiency @ 5 Hz |
52 % |
| Isolation Efficiency @ 10 Hz |
83 % |
| Horizontal Natural Frequency |
2.9 Hz |
| Isolation Efficiency @ 5 Hz |
40 % |
| Isolation Efficiency @ 10 Hz |
92 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
2.1 Hz |
| Isolation Efficiency @ 5 Hz |
70 % |
| Isolation Efficiency @ 10 Hz |
91 % |
| Horizontal Natural Frequency |
1.8 Hz |
| Isolation Efficiency @ 5 Hz |
81 % |
| Isolation Efficiency @ 10 Hz |
95 % |
| Net Load Capacity @ 80 psi |
| 200 lbs. (91 kg) |
|
| Finish |
| Standard |
Linear White
Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
| Approximate Shipping Weight |
| 2210-01-xx |
157 lbs. (72 kg) |
| 2210-04-xx |
145 lbs. (66 kg) |
Note: Typical performance efficiencies are for microdisturbances.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.

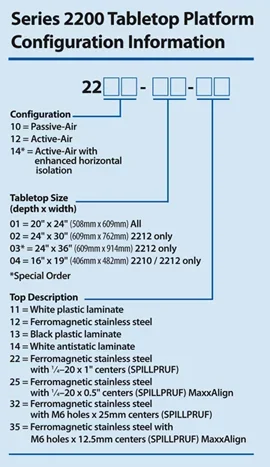

Configuration
Image Credit: Kinetic Systems, Inc.
