The 5100 Series has a patented SPILLPRUF spill control system, accurate honeycomb construction, 3/16" thick ferromagnetic stainless-steel top and bottom skins, and broadband damping for improved vibration absorption.
- Table dimensions: lengths up to 20”
- Widths up to 6”
- Thicknesses up to 36"
Custom tables are popular, and welded splice plates are recommended for tables that are exceptionally long, wide, and “L,” “T,” or “U” shaped.
Modular rigid supports or Active-Air or Passive-Air vibration isolators, sold separately, can be linked with any optical table by Kinetic Systems.
Features and Benefits
- Widths to 6’, lengths to 20’, thickness to 36”
- Class 10 is available and compatible with Class 100 cleanrooms
- Low reflective surfaces
- Broadband damping
- Plated steel, precision-formed honeycomb core
- Ferromagnetic stainless-steel bottom and top skin 3/16 ′′ thick
- SPILLPRUF spill management
Specifications
- First Resonance Transmissibility Q: 10 to 15
- Core Shear Modulus: 225,000 psi
- First Resonance Corner Compliance: 20 µ in/lb
- Deflection Under 250 lb Concentrated Load: ≤7.0 (10)-5 in
- Flatness: ± 0.005” overall
- Damped Natural Frequency: 270 Hz
- Max Dynamic Deflection Coefficient: ≤0.7 (10)-3
- IRD-Max Relative Motion (in): ≤6.0 (10)-9

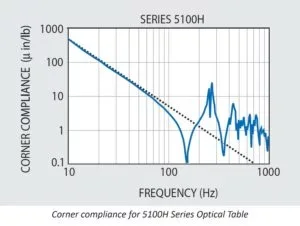

Image Credit: Kinetic Systems, Inc.

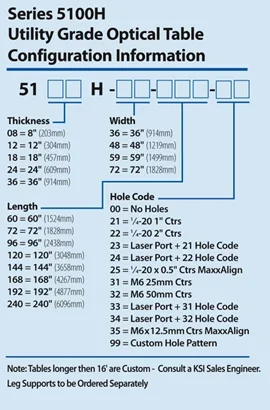

Configurations
Image Credit: Kinetic Systems, Inc.
