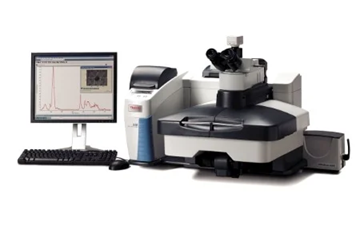

This user-friendly, point-and-shoot Raman Microscope makes obtaining Raman data faster than ever before. Enhanced imaging features, including DynaCal Automatic X-axis Calibration (which eliminates manual calibration) and immediate visual insights from 3D Visualization Software, make the new Thermo Scientific™ DXR3 Raman Microscope incredibly efficient.
The DXR3 Raman Microscope offers flexibility and speed through its innovative gratings and lasers. It is ideally suited for a wide range of applications, including academic research, pharmaceuticals, microplastics analysis, advanced polymers, and many others.
Download the Brochure for More Information
Capabilities
- Automatic alignment and calibration guarantee scientifically precise measurements, eliminating the need for manual procedures or tools.
- The three-path fine beam auto-alignment system ensures continuous optimal performance and sampling integrity.
- Lasers and other components are interchangeable and can be shared across all instruments within the DXR3 Raman family.
- Laser power regulation ensures consistent sample excitation throughout the laser's lifespan.
- New wavelengths can be added easily without requiring tools or service engineer visits.
- The innovative 3D Advanced Visualization Software provides immediate visual insights.
- The new Particle Analysis feature enables rapid identification and analysis of microparticles.
- This system delivers high-performance confocal Raman microscopy in an integrated and robust design.
- Features include automated fluorescence correction, real-time preview, auto exposure, and cosmic ray rejection.
- A system status indicator provides users with an immediate visual confirmation that the system is optimized and ready for data acquisition.
- Lock-in-place and pre-aligned components with automatic recognition and stored alignment allow any user to reconfigure an instrument within seconds.
- The advanced spectrograph design, with no moving parts, simplifies operation and enhances the robustness of the detection system and calibration.
- Optional, automated polarized Raman capabilities provide structural information that complements the chemical data obtained.
Validation
- Omnic D/S software offers compliance with CFR 21 Part 11 regulations.
- A comprehensive DQ/IQ/OQ/PQ validation package is available, featuring automated software protocols and thorough documentation.
Laser Safety
- The laser is physically blocked from the direct viewing path to prevent eye exposure.
- The microscope itself is independently certified as a Class 1 laser-safe device. (Please note: Optional fiber-optic accessories and certain other optional accessories are Class IIIb laser devices and require the use of laser safety eyewear and adherence to laser safety precautions.)
Download the Brochure for More Information
Exceptional Performance
- Optimized gratings are used for each excitation laser, preventing the performance compromises seen in systems that share gratings across multiple lasers.
- A complete spectral range of 3500-50 cm-1 can be captured in a single CCD exposure, eliminating stitching artifacts. An extended spectral range of up to 6,000 cm-1 is available for the 532 nm laser.
- The spatial resolution is demonstrated to be as fine as 540 nm on ideal samples.
- The confocal depth resolution is shown to be as good as 1.7 μm on ideal samples.
- The proprietary Triplet spectrograph maintains focus across all wavelengths, delivering exceptional peak shape.
- The Laser Power Regulator actively monitors laser power, ensuring consistent and reproducible laser excitation power throughout the laser's lifespan, even after replacements.
- Lasers are depolarized to prevent misleading results due to sample orientation.
- The system supports multiple excitation lasers: 455 nm, 532 nm (high brightness and high power), 633 nm (high brightness and high power), and 780 nm.
- Multidimensional wavelength calibration provides accurate wavelength calibration across the entire spectral range.
- Software-controlled switching allows seamless transition between high-energy and confocal collection modes.
- Proprietary auto-alignment ensures the system maintains like-new condition over time.
- Proprietary Smart-backgrounds automatically eliminate the CCD dark energy profile.
- Automatic fluorescence correction is available with all excitation lasers.
- Research-grade Olympus viewing optics are integrated into the system.
- Automatic intensity correction generates spectra comparable between different excitation lasers and instruments.
- A proprietary algorithm for automated cosmic ray rejection and high-quality laser line filters ensures artifact-free spectra.
Recommended For
- Art restoration and conservation to identify and characterize glazes, resins, pigments, and inks.
- Gemology for rapid identification of colored stones, characterizing inclusions and adulterants, and distinguishing natural from synthetic diamonds.
- Forensics for the identification of trace evidence and illicit drugs.
- Academic research, with applications in biological studies, material science, and various other applied research fields.
- Pharmaceuticals, for the analysis of contaminants, polymorphs, and for particulate and diffusion studies.
- Nanotechnology to characterize carbon nanotubes (CNTs), diamond-like carbon (DLC) coatings, graphene, and other nanostructures.
- Archaeology for characterizing artifacts made of shell, bone, horn, and ceramics.
- Solar technology to analyze silicon crystallinity and characterize photovoltaic materials.
- Polymer science for the study of inclusions and gel defects, weathering effects, tie layers in laminates, and crystallinity.
- Failure analysis for characterizing particulates and small features on surfaces.
