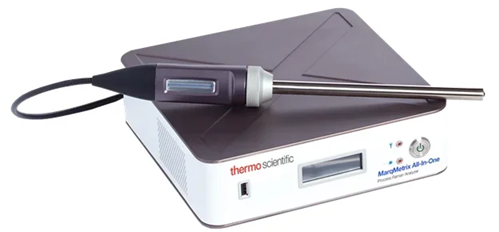

The Thermo Scientific™ MarqMetrix™ All-in-One Process Raman Analyzer allows organizations to do fast, non-invasive studies without requiring prior sample preparation. This device simplifies operations by providing fast, precise Raman measurements, as well as intuitive one-button hardware and user-friendly software.
The equipment is ready to use right out of the box and can provide very precise Raman measurements in under 15 minutes.
The analyzer is housed in a sturdy, portable casing that allows it to be readily carried to its intended location. Factory calibration ensures consistent, continuous analysis. Furthermore, the system can be readily integrated into existing operations without requiring any additional technological knowledge.
Video Credit: Thermo Fisher Scientific - Vibrational Spectroscopy
Get in touch now
Features of the MarqMetrix All-in-One Process Raman Analyzer:
- Small size for an easy deployment
- Non-Raman spectroscopists can easily set up and deploy the system
- Factory calibration ensures hardware stability and mobility
- Non-invasive - Reduces sample contamination
- Non-destructive – Protects valuable samples
- Analysis without sample pretreatment to offer Raman spectrum results in real-time
Image Credit: Thermo Fisher Scientific - Vibrational Spectroscopy
Flexibility to Meet User Needs
With a wide selection of suitable probes available, the MarqMetrix All-in-One Process Raman Analyzer is simple to integrate into several applications.
Application Versatility
The MarqMetrix All-in-One Process Raman Analyzer is ideal for applications using Process Analytical Technology (PAT).
Process Analysis and Control
The MarqMetrix BallProbes™ and All-in-One Process Raman Analyzer enable exact compositional measurements. They make ideal tools for monitoring, controlling, and describing real-time activities.
Get in touch now
Specifications
Source: Thermo Fisher Scientific - Vibrational Spectroscopy
| . |
. |
| Display |
Digital |
Certifications/
Compliance |
Laser Certification: Class 3B laser device reported to the FDA |
| Dark Noise |
≤16.5 counts at 10 sec. integration |
| Depth (Metric) |
25 cm |
| Detector |
Thermally stabilized CCD (2-stage TEC) |
| Fiber Conditions |
FC/PC (Both excitation and collection) |
| Height (Metric) |
7.7 cm |
| Hertz |
50/60 Hz |
| Includes |
Wireless mouse, HDMI cable, monitor |
Laser Excitation
Wavelength |
785 nm, Excitation power: 10 to 450 mW |
| Operating Systems |
Software: MarqMetrix Raman suite Controller: Integrated PC (Windows 10 OS) |
| Ports |
1RJ-45 Ethernet port 3 USB 3.0 |
| Safety Features |
1 keyed Laser interlock switch, Electronic laser trigger |
| Spectral Range |
100 to 3250 cm-1 |
| Spectral Resolution |
6.5 cm-1 average across the spectral range |
Temperature Range
(Metric) |
15 °C to 33 °C |
| Video Output |
1 Display port 1.1 (VGA, DVI, or HDMI with adaptor) |
| Width (Metric) |
25 cm |
| Unit Size |
Each |
