The Thermo Scientific™ NanoDrop™ Ultra Spectrophotometer and Fluorometers enable scientists to measure and evaluate nucleic acids and proteins with greater accuracy, speed, and reliability.
Thermo Scientific's NanoDrop™ Ultra Spectrophotometers and Fluorometers are the next generation of microvolume detection. This advanced equipment provides high accuracy and sensitivity for nucleic acid and protein analysis with sample quantities as low as 1.0 μL.
The NanoDrop Ultra aims to boost processes in a variety of domains, including genomics, proteomics, molecular biology, biotechnology, pharmaceuticals, and life sciences research. It offers unrivaled precision, efficiency, and reliability in a single compact device.
Thermo Scientific™ NanoDrop™ Ultra Microvolume UV-Vis Spectrophotometers and Fluorometers provide unprecedented insight into sample quality, preventing costly workflow hiccups.
Thermo Scientific’s Acclaro™ Sample Intelligence technology improves measurement accuracy and contaminant detection. Quantify and certify DNA, RNA, and protein samples in seconds with only 1–2 μL. Get full-spectral data before using it in downstream applications. Cuvette-compatible variants are also available for further versatility.

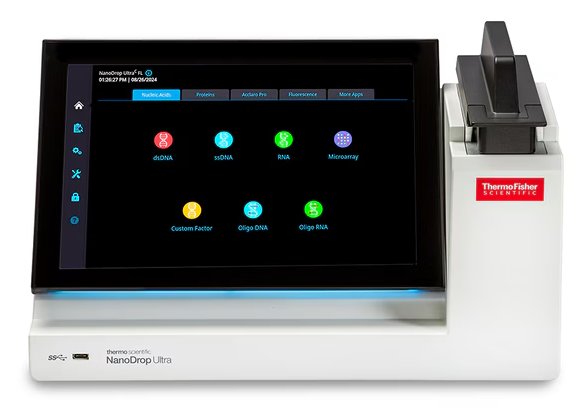

The NanoDrop Ultra spectrophotometers, with their compact design and large, high-resolution 10.1 in. touch screen interface, are an excellent choice for users seeking flexibility and convenience.
The optional Acclaro Pro software, which is compatible with the NanoDrop Ultra equipment, improves accuracy for highly concentrated samples through an improved algorithm. This is the next-generation NanoDrop single-channel instrument, featuring better hardware and software features than the popular NanoDrop 2000/2000c and NanoDrop One/OneC Spectrophotometers.
Acclaro Sample Intelligence Technology
- Contaminant detection and analysis: Provides a full evaluation of sample purity while also correcting sample absorbance, allowing users to accurately identify, measure, and reduce contaminants. Plant and bacteria DNA and RNA differentiations are available to researchers, scientists, and professionals in agriculture, plant biology, microbiology, and genetic engineering
- Sample integrity insight: Sends real-time notifications when bubbles are discovered in the sample, which could otherwise result in false readings
- Reliable accuracy: uses digital image analysis and embedded sensors to guarantee measurement integrity
Tools to Aid in 21 CFR Part 11 Compliance
The optional Thermo Scientific™ SciVault™ 2 software provides laboratories with the resources they need to adhere to US FDA 21 CFR Part 11 and may be installed on the device or a companion PC.
- Easy compliance: SciVault 2 manages user accounts, user account access, digital signatures, and audit logs by integrating with the NanoDrop Ultra software user interface
- On-board options: Users can connect their instrument to the domain to utilize their Windows account management, or they can use on-board user account management to execute applications directly on the local instrument
- Centralized solution- Install SciVault 2 software on a centralized computer to manage privileges and see audit records for numerous NanoDrop Ultra equipment in various laboratories
Streamlined Workflow
- Fully integrated qPCR recipe calculator - users can use the built-in kit library or add their own favorites to have the software do the math for them. The qPCR recipe calculator recommends how to prepare the reaction based on the sample concentration
- Auto-Measure and Auto-Blank features: Immediate measurements that take place when the pedestal arm is down can simplify multi-sample processing. One tap on the screen can activate or deactivate these features
Advanced Connectivity for Data Storage, Printing and Sharing
- Export to the cloud: Export data directly to popular cloud storage services such as Microsoft OneDrive, Google Drive, and Thermo Fisher Connect
- Direct LIMS integration: An integrated RESTful API allows users to submit data directly into the LIMS
- Easy data-to-printer options: Print findings directly from the NanoDrop Ultra instrument via Wi-Fi, Ethernet, or a USB printer connection, or use the Nanodrop Ultra PC Control software to print exported data from the PC
- Data User’s Way: Customize and evaluate the information in the data file before exporting to ensure that it fulfills any downstream requirements
Accuracy Beyond Expectations with the Acclaro Pro Software
This optional software package comprises updated versions of popular measurement applications that are unlocked from the factory, enabling ±5 % error over the absorbance dynamic range.
- Precise high concentration measurements: Absorbance measurements within 5 % error up to 550 Abs (10 mm equivalent) up to 400 mg/mL IgG or 18,000 ng/μL
- Quick dilution-free process: In two minutes, take three measurements on the pedestal
- Enhanced calibration: Bundled purchases include an additional calibration from the factory to ensure remarkable accuracy in Acclaro Pro applications
This is solely for research purposes, not diagnostics.
Specifications
Source: Thermo Fisher Scientific - UV-Vis Spectroscopy
| . |
. |
| Certifications/Compliance |
All NanoDrop instruments are approved to CE and UL/CSA. |
| Compatibility |
DYMO 550 Turbo printer, Bluetooth keyboard, mouse and barcode reader |
| Concentration |
dsDNA: Pedestal: 27,500 ng/μL BSA (IgG): Pedestal: 820 (400) mg/mL |
| Connections |
2x USB-A Ports, 1x USB-C Port, Ethernet, Bluetooth™, Wi-Fi |
| Detection Range |
dsDNA: Pedestal: 1.0 ng/μL, Cuvette: 0.2 ng/μL, BSA (IgG): Pedestal: 0.03 (0.015) mg/mL, Cuvette: 0.006 (0.003) mg/mL |
| Dimensions (L x W x H) |
12.6 x 7.1 x 11.0 in (32 x 18 x 28 cm) |
| For Use With (Application) |
Nucleic Acid A260, A260/A280, A260/A230 and Labeled Nucleic Acids, Oligos;, Protein A280 and A205, Protein Pierce 660, Protein Bradford, Protein BCA, Protein Lowry, Labeled Proteins, OD600, UV-Vis, and Custom Methods, Acclaro Pro Applications |
| Includes |
ND Ultra Microvolume Spec |
| Keypad |
Built-in touchscreen |
| Measurement Time |
Standard: ≤7 sec Acclaro Pro: ≤30 sec |
| Pathlength |
0.030 to 1.0 mm (auto-ranging) |
| Photometric Accuracy |
3 % at 0.97 A, 302 nm, (Absorbance expressed at Abs/mm at 25 °C) |
| Photometric Range |
10 mm equivalent: Pedestal: 0-550 A, Cuvette: 0-1.5 A |
| Power Consumption |
Operating: 15 W; Standby: 7 W |
| Processor |
Custom Linux |
| Repeatability |
Typical: 0.002 A (1.0 mm path) or 1 %CV, whichever is greater (SD of 10 individual measurements at 0.97 A) |
| Sample Volume (Metric) |
Min 1 μL |
| System Requirements |
Windows 10 or Windows 11 |
| Warranty |
2 Years |
| Wavelength Accuracy |
±1 nm |
| Weight (English) |
Approximately 9.0 Ib. |
| Weight (Metric) |
4.1 kg |
| Detector Type |
2048-element CMOS Linear Image Sensor |
| Display |
10 in. High Definition Color Display |
| Languages |
Chinese, English, French, German, Japanese, Spanish, Polish, Italian, Korean |
| Light Source |
Xenon Flash |
| Product Line |
NanoDrop |
| Spectral Bandwidth |
1.8 nm |
| Voltage |
12 VDC |
| Wavelength Range |
190 to 850 nm |
| Unit Size |
Each |
