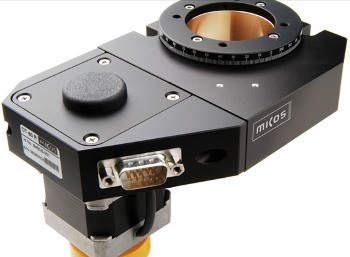

DT-80R Motorized Rotation Stage - Compact and High Speed - PI Micos

The new rotation stage DT-80R is a cost-effective alternative to the PI miCos DT-65 N and PRS-110 high precision rotation stages.

The belt driven DT-80 R rotation stage enables a much higher speed of rotation in comparison to other stages. The large aperture of 40 mm diameter is suitable for a number of applications in the microscopy area.

Preloading of the belt driven combination is done to produce an almost zero backlash and smooth motion. DT-80 R rotation stages are equipped with hall reference switches and are driven by a DC or 2-phase stepper motor. Furthermore, the DT-80 R can be ordered with our smc pollux motor- controller module.

Key Features

The key features of the DT-80R are:

  • Uni-directional repeatability down to 0.01 °
  • Maximum speed 1170 °/sec
  • Load capacity up to 2 kg
  • Integrated reference switches
  • Clear aperture 40 mm
  • Rotation range 360°, endless
Comments
  1. KONSTANTINOS PAPANIKOLAOU KONSTANTINOS PAPANIKOLAOU United Kingdom says:

    I am working in a lab and we have this rotating stage. Whenever I am testing the rotator one rotation is executed smoothly but then starts to vibrate vigorously. Could you give me some advice please, as I need to use the rotating stage for the next few weeks.?
