Anton Paar has merged decades of expertise with groundbreaking scientific developments to establish Ultrapyc as the most user-friendly gas pycnometer for semi-solid and solid density available on the market.

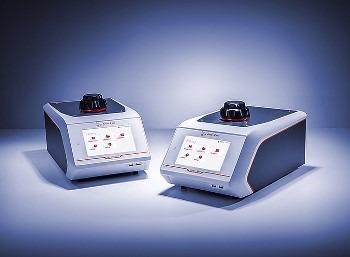

Ultrapyc 3000
- Flow or pulse sample preparation modes
- Consistent measurement of standard solid samples
- Precise results for samples from 4.5 cm3 to 135 cm3.
Image Credit: Anton Paar GmbH

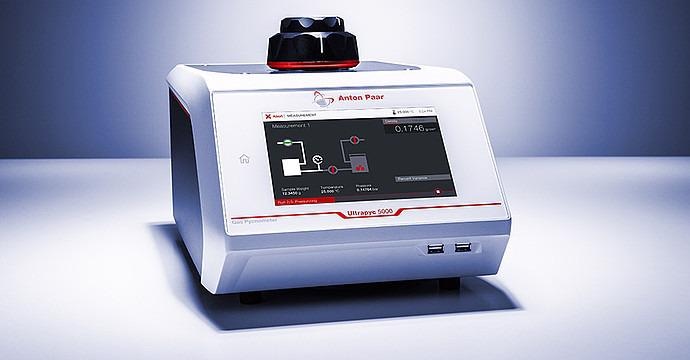

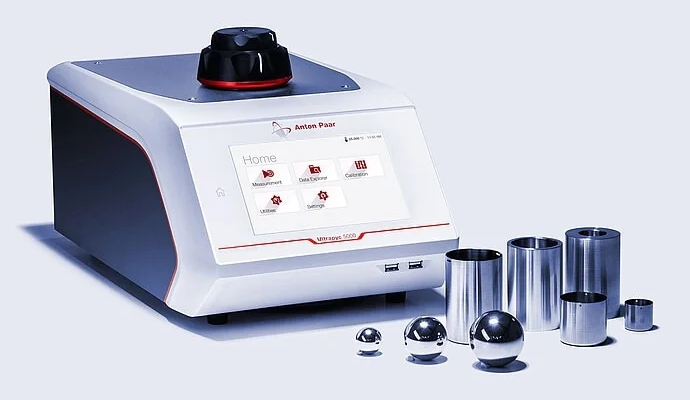

Ultrapyc 5000
- Precise results for samples from 4.5 cm3 to 135 cm3
- Advanced density measurement of powders, solids, and semi-solids
- Built-in Peltier control: no external bath required
- PowderProtect: no instrument contamination.
Image Credit: Anton Paar GmbH

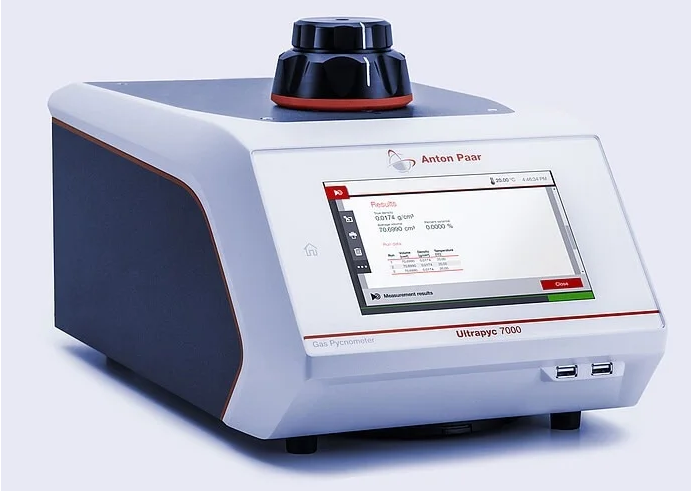

Ultrapyc 7000
- Delivers precise results for sample volumes between 4.5 cm3 and 135 cm3
- Premium model featuring built-in and customizable methods
- Includes ASTM D6226-compliant methods for open-cell foam content
- PowderProtect technology prevents instrument contamination
- Built-in Peltier temperature control from 3 °C to 60 °C, without requiring an external bath.
Image Credit: Anton Paar GmbH
Ultrapyc 7000 Micro
- Perfect for R&D and limited-quantity materials
- A top-quality model designed for limited quantities, featuring integrated and customizable techniques.
- Precise outcomes for extremely small sample sizes (from 0.1 cm3 to 10 cm3)
- PowderProtect: No instrument contamination
- Built-in Peltier temperature control from 3 °C to 60 °C, no external bath required
Image Credit: Anton Paar GmbH

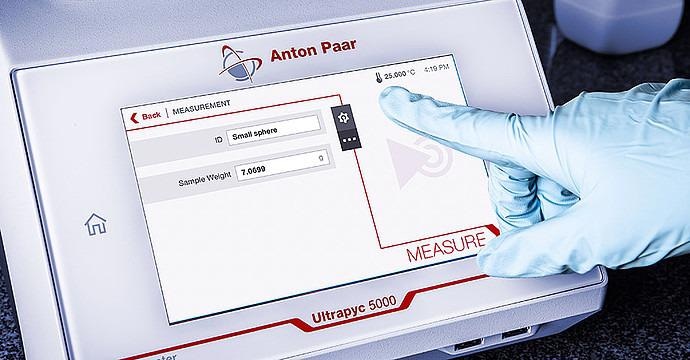

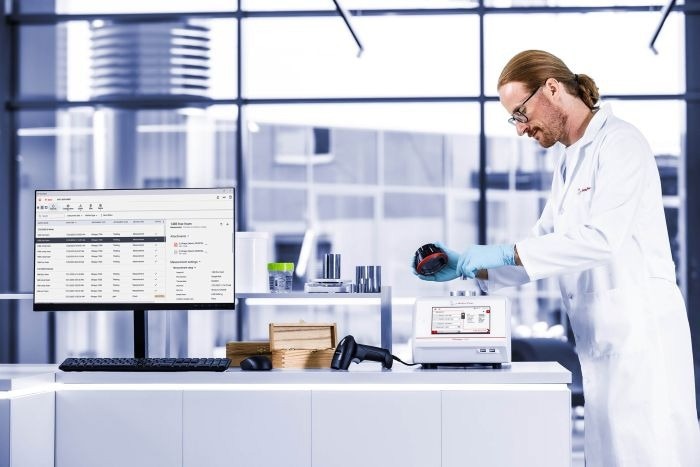

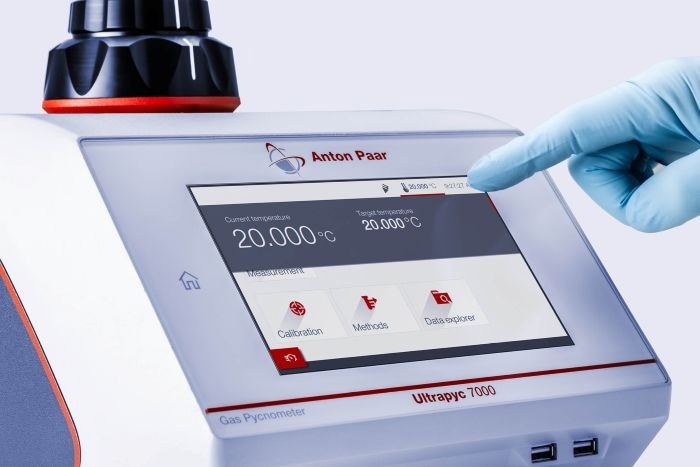

With Ultrapyc’s rapid method selection and built-in accessories, users can transition from sample reception to measurement execution, and finally to result analysis on the touchscreen or within Anton Paar’s AP Connect lab execution system, in less than three minutes.
Ultrapyc can perform measurements independently in under a minute, making it ideal for monitoring the quality of the samples during the manufacturing process.
The process of conducting density measurements for solid pieces, powders, slurries, and semi-solids has reached unprecedented speed and accuracy.
Key Features
Automate for Accuracy
The Ultrapyc series instruments automatically determine the best settings and accurately regulate temperature, thereby removing the necessity for manual modifications and minimizing the potential for user mistakes.

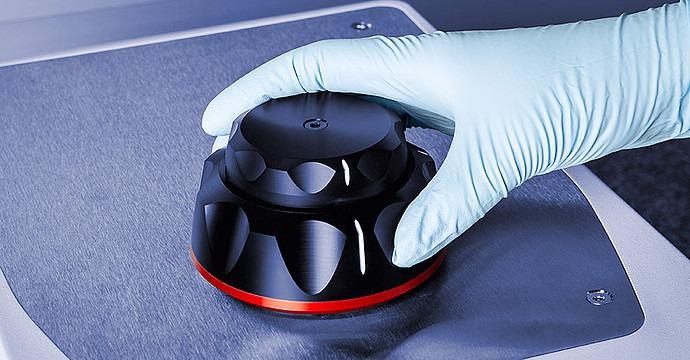

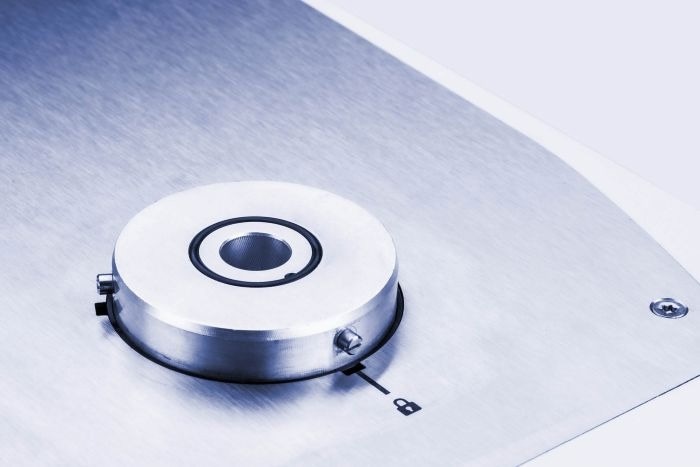

When combined with the TruLock lid, which ensures a uniform and repeatable chamber volume, Ultrapyc gas pycnometers provide the utmost precision in analyzing solid and semi-solid densities.
Image Credit: Anton Paar GmbH
Measure any Sample With Confidence
Anton Paar's ultrapyc gas pycnometers are designed to manage difficult samples more effectively. Compared to similar instruments, they can accommodate a broader variety of sample materials (such as pellets, slurries, and foams).
Image Credit: Anton Paar GmbH
- Single-use cups enable rapid and mess-free measurement of challenging materials such as bitumen, thereby removing the need for cleaning.
- The innovative PowderProtect technology allows for secure examination of powders and volatile slurries without the risk of harming the instrument.

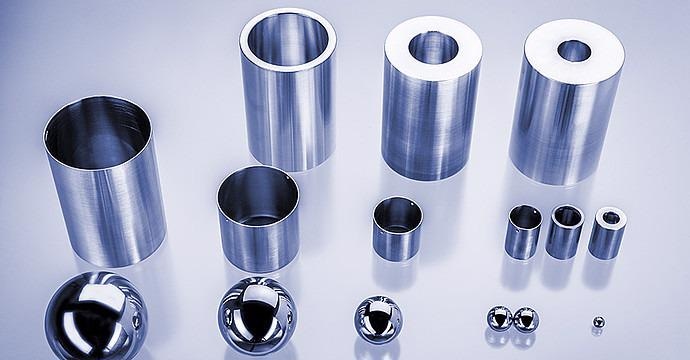

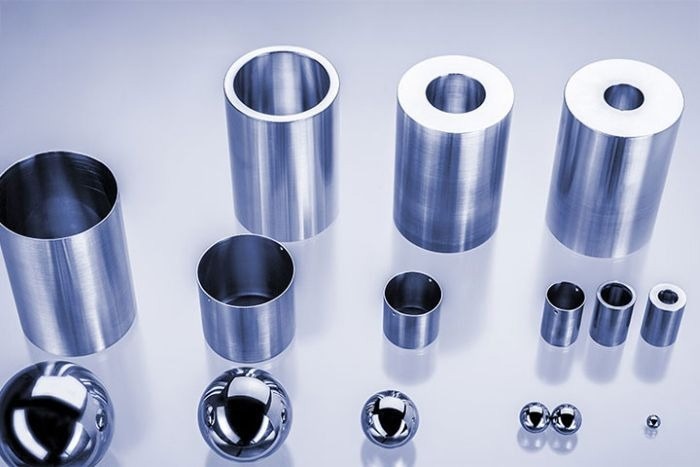

- An extensive range of sample cells and built-in analysis techniques further streamline processes, establishing the Ultrapyc series as the preferred choice for intricate density assessments.

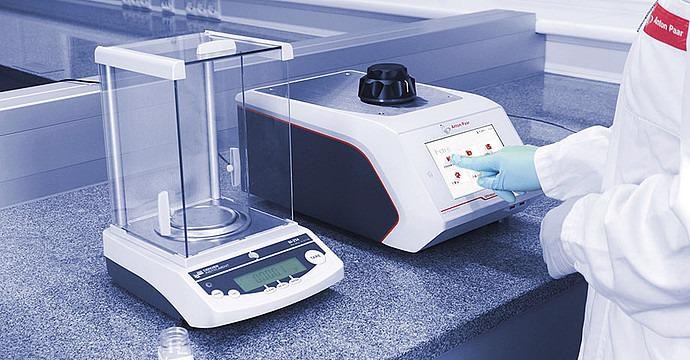

Work Fast, Save Time
Using the Ultrapyc, users can transition from sample preparation to measurement and then to results in less than three minutes.
Image Credit: Anton Paar GmbH
The fast method selection and seamlessly integrated accessories optimize each phase, providing fast and dependable results with minimal exertion.
Optimize Scarce Resources With the Ultrapyc 7000 Micro Gas Pycnometer
The Ultrapyc 7000 Micro is the most precise and sophisticated small-volume gas pycnometer available today. Its industry-leading small-volume measurements, which can reach as low as 0.02 cm3, allow for the preservation of rare samples and safeguarding of valuable materials, making it perfect for high-cost or limited-availability materials.
Image Credit: Anton Paar GmbH

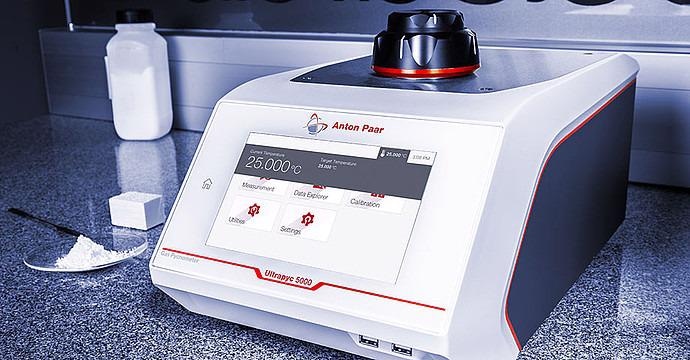

Take Control of Temperature Regulation in Gas Pycnometer Measurements
Ultrapyc instruments offer an industry-leading temperature range spanning from 3 °C to 60 °C. With a temperature control precision of ±0.02 °C, Ultrapyc guarantees rapid stabilization and dependable outcomes for slurries, suspensions, gels, or any other materials, providing consistent results even for the most temperature-sensitive samples.
Image Credit: Anton Paar GmbH
Specifications
Source: Anton Paar GmbH
|
3000 |
5000 |
7000 |
7000 Micro |
| Performance specifications |
| Accuracy |
0.02 %a |
0.015 %a |
0.075 %b |
| Number reference volumes |
2 (TruPyc) |
| Nominal reference volumes |
50 cm3 & 8 cm3 |
2 cm3 & 5 cm3 |
| Inserts available |
135 cm3, 50 cm3, 10 cm3, 4.5 cm3, 1.8 cm3, 0.25 cm3 |
10 cm3, 4.5 cm3, 1.8 cm3, 0.25 cm3, 0.1 cm3 |
| Preparation modes |
Flow, pulse, none |
Flow, pulse, vacuum, none |
| Gas expansion direction |
Sample chamber first |
Bi-directional flow (PowderProtect) |
| Built-in temperature control |
No |
3 °C to 50 °C |
3 °C to 60 °C |
| Temperature stability |
No |
0.02 °Cc |
| Built-in & customizable method library |
No |
Yes |
| Built-in foam methods and calculations |
No |
No |
Yes |
No |
| Sample chamber closure |
Repeatable dual-turn self-aligning lid (TruLock) |
| Display & control |
7-inch TFT WVGA (800×480) PCAP touchscreen |
| Graphical user interface |
Yes |
| Transducer accuracy |
Better than 0.1 % |
| Pressure reading resolution |
Digital pressure readout 0.0001 psi |
| Connectivity Specifications |
| USB ports |
4 |
| Printer compatible |
Yes |
| Balance compatible |
Yes |
| Barcode / QR reader compatible |
Yes |
| PC / Network connectivity |
Yes (AP Connect) |
Yes (AP Connect or network shares) |
| Language support |
| Languages |
Chinese, English, French, German, Japanese, Korean, Portuguese, Spanish, Turkish |
Chinese, English, French, German, Japanese, Korean, Polish, Portuguese, Spanish, Turkish |
| Physical specifications |
| Width × depth × height |
27 cm (11 in) × 48 cm (19 in) × 25 cm (10 in) |
| Weight |
10 kg (22 lb) |
| Gas used (not supplied) |
Ultra-high-purity He, N2, or other non-reactive, non-corrosive gas (e.g., Ar) regulated to ≤ 30 psi / 2.07 bar |
| Power supply |
External AC/DC Adapter 100-240 V
AC 47-63 Hz, Output 24 VDC 3 A |
External AC/DC Adapter 100-240 V
AC 47-63 Hz, Output 24 VDC 5 A |
| Environmental specifications |
| Ambient temperature |
10 °C to 35 °C (50 °F to 95 °F) |
| Air humidity |
10 % to 90 % RH (non-condensing) |
| Altitude |
Maximum 3000 m (9800 ft) |
| Indoor / outdoor usage |
Indoor only |
| Pollution degree |
2 |
| Trademarks |
Ultrapyc (5362587) |
a With reference volume of 70.699 cm3
b With reference volume of 2.145 cm3
c For sample temperatures ≥ 15 °C under standard laboratory conditions
