P-131: Programmable, Active Shims for Optical Fine Alignment

P-131 PIRest Actuators are nanometer-resolution active shims with long-term stability.

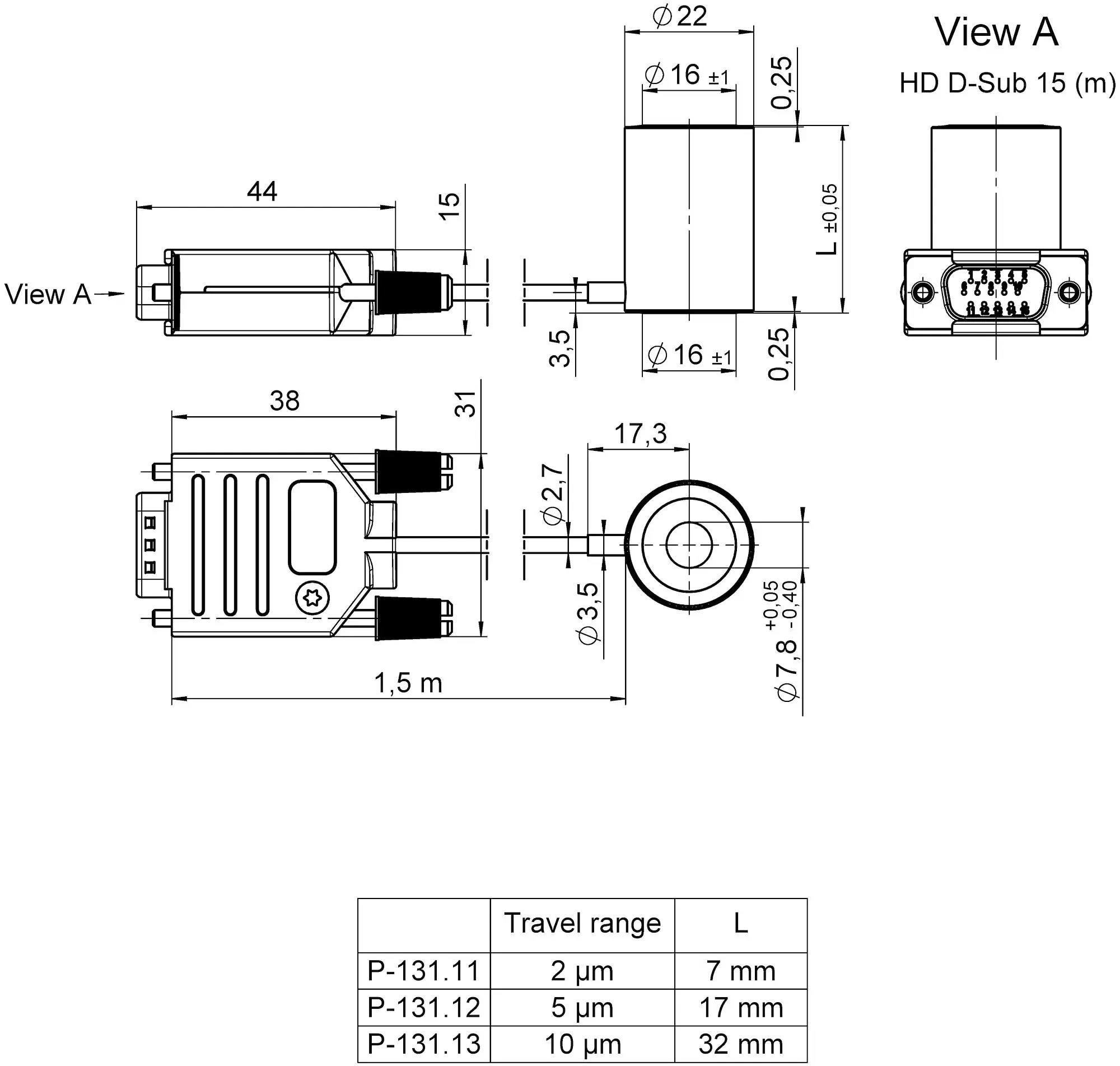

P-131.1x: dimensions in mm.

P-131.1x: dimensions in mm. Image Credit: PI (Physik Instrumente) LP

  • Nanometer resolution and micrometer displacement
  • Load capacity up to 4000 N per actuator
  • Temperature sensor
  • Long-term stability without a permanent power supply
  • Easy readjustment of machines at inaccessible locations
  • Avoids time-consuming manual adjusting processes

Fields of Application

  • Precision mechanics
  • Static precision positioning
  • Metrology/interferometry
  • Set-and-forget applications
  • Adaptive mechanics
  • Drift compensation
  • Alignment of optical components

High User-Friendliness Due to Automatic Configuration

When the electronics are turned on, the mechanic’s ID chip, which contains crucial operating characteristics, is automatically read out.

Long-Term Stable Positioning Without Permanent Power Supply

Actuators equipped with PIRest technology keep their position steadily after being moved without a constant control voltage supply. Modifications are affordable, easy to maintain, and with nanometer precision even at remote sites.

Specifications

Source: PI (Physik Instrumente) LP

  P-131.11 P-131.12 P-131.13 Unit Tolerance

Dimensions OD × ID × L

22 × 8 × 7

22 × 8 × 17

22 × 8 × 32

mm



Nominal travel range*

2

5

10

µm

±20 %

Minimum incremental motion*

<10

<10

<10

nm



Load capacity

4000

4000

4000

N

max.

Stiffness

1000

350

170

N/µm

typ.

Electrical capacitance

3.4

10.2

20.4

µF

±20 %

PIRest operating modes











Operating point for active adjustment

120

120

120

V

max.

Operating point for long-term stable position

0

0

0

V



Miscellaneous











Cable length

1.5

1.5

1.5

m



Voltage connection

HD Sub-D 15 (m)

HD Sub-D 15 (m)

HD Sub-D 15 (m)





ID chip

Yes

Yes

Yes





Temperature sensor

Yes

Yes

Yes





Operating temperature range

5 to 40

5 to 40

5 to 40

°C



Recommended electronics

E-135

E-135

E-135





* At room temperature

Vacuum versions available on request.
