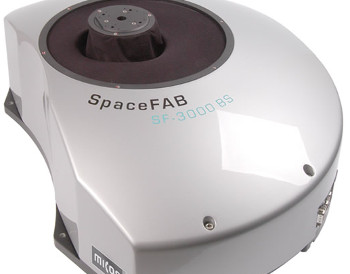

Precision Parallel-Kinematics Positioning System - SpaceFAB SF-3000 from PI micos

With a single SpaceFAB SF-3000 BS all six degrees of freedom can be moved without further positioning elements. The low weight of the moving platform enables high-dynamic positioning processes.

The non pre-loaded design can conveniently carry up to 2 kg center mounted. SpaceFAB SF-3000 BS is operating in closed loop mode. SpaceFAB SF-3000 BS was particularly developed for applications in fiber-optic alignment.

Furthermore, SpaceFAB SF-3000 BS is designed ideally for auto alignment of optical components, micro-fabrication and bio-genetic.

SF-3000 BS is the Motion Server that includes all the mathematical transformations so that the user can start movements directly by specifying the six coordinates x, y, z, Rx, Ry and Rz. It is also possible to move arbitrary trajectories in a contouring mode.

The Motion server can be used autonomously or in combination with self made applications. These applications can be written in any modern programming language, the communication is done with TCP/IP.

Key Features

The key features of the SpaceFAB SF-3000 are:

  • Six axes micro positioning system
  • Compact, low profile system
  • Pivot point can be set by the customer
  • User friendly software
  • Can be used by any modern programming language
  • Including software, controller and amplifiers
  • Travel ranges linear 50 x 100 x 12.7 mm
  • Travel ranges rotation Rx, Ry, Rz 10°
  • Load capacity 3 kg center mounted
  • Automatic alignment
